- Medium-duty foot switch with highly durable die-cast housing and powder-painted finish.
- Includes 8-ft cable with 3-pronged piggyback plug.
- 15 A, 125 VAC, SPDT (wired normally open).
- Momentary action - Press and hold foot pedal to turn on, release to turn off.
- Made in USA. Certified to UL and CSA standards.

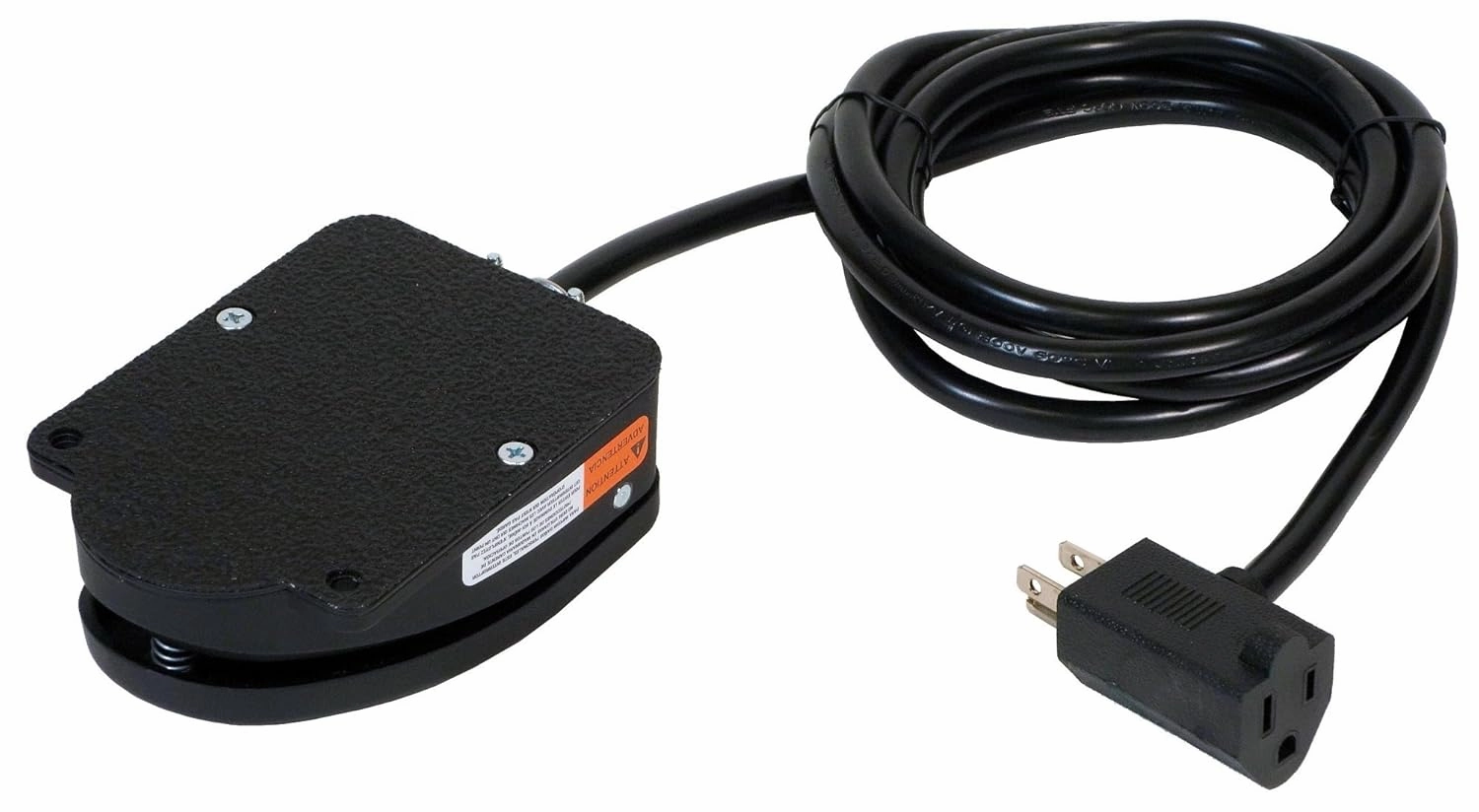

The F200-1501 is a medium-duty foot switch featuring a highly durable die-cast zinc alloy housing, powder-painted finish, and 3-pronged piggyback plug. The added weight and quality will make this a long-lasting foot switch in your home or shop. Ideal for power tools, meat grinders, Dremel tools, woodworking, routers, lathes, billy pedal, shop tools, and many more. Features a 15-amp, 125 VAC-rated switch with an 8-foot cable and a 3-pronged piggyback plug (NEMA 5-15 series): plug the pedal into your North American wall socket, and then plug your device into the back of that plug, and the foot switch will now be in line with the device. This is a momentary foot switch, which means that it turns your product on when your foot is on the pedal, and turns it off when you release your foot from the pedal. Includes a traction pad and two exterior bolt-down holes. Enclosure rating: CSA/NEMA Type 1 and IEC 60529 IP20. For indoor use in dry environments. CSA Certified to US and Canadian standards. Size: 4.8" L x 3.5" W x 1.7" H plus the cable; 3 pounds. Cross reference: Clipper 632-SC3. One year warranty on parts and labor. Made in the USA by SSC Controls Company.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 4.8 x 3.5 x 1.7 inches; 3.2 Pounds
- Date First Available : November 10, 2015
- Manufacturer : SSC Controls
- Country of Origin : USA
